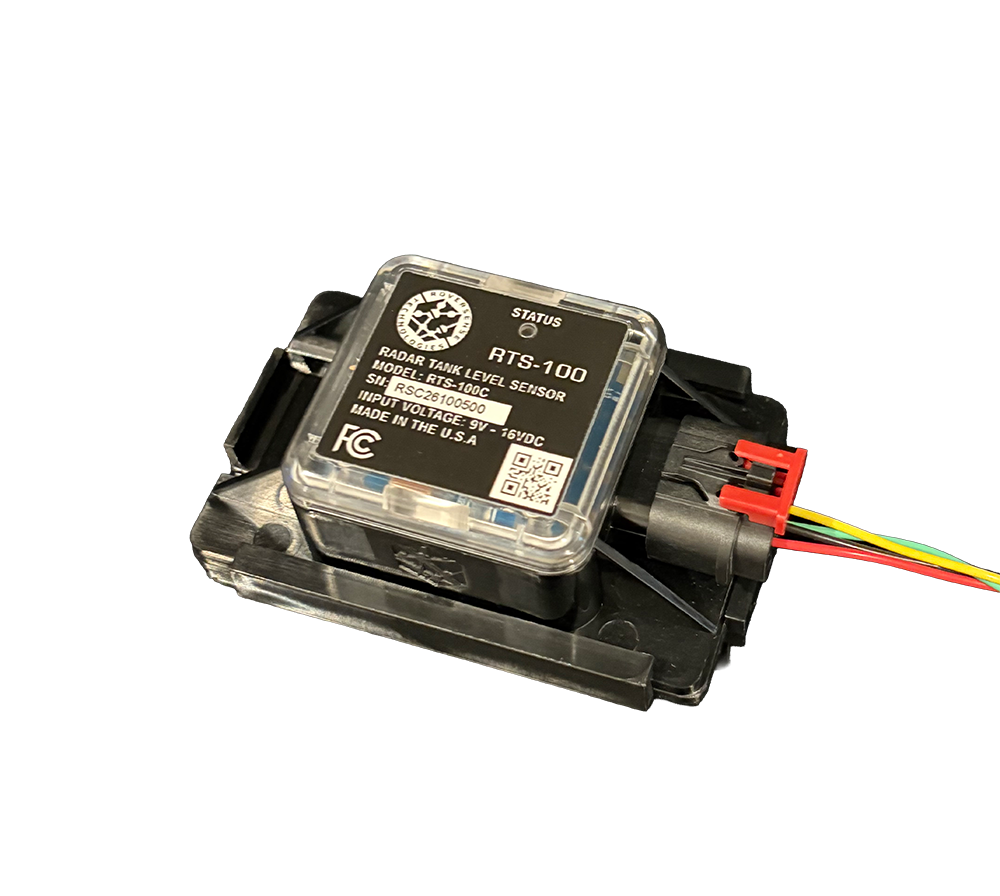

RTS-100 Liquid Level Sensor

$0.00

The RTS-100 radar liquid level sensor is designed for use in recreational vehicles, campers, or anywhere a compact, low power, highly accurate liquid level measurement is needed. The sensor is impervious to corrosion, build up, and mixed materials. It features advanced digital signal processing to always provide an accurate level even when other competitive products fail.

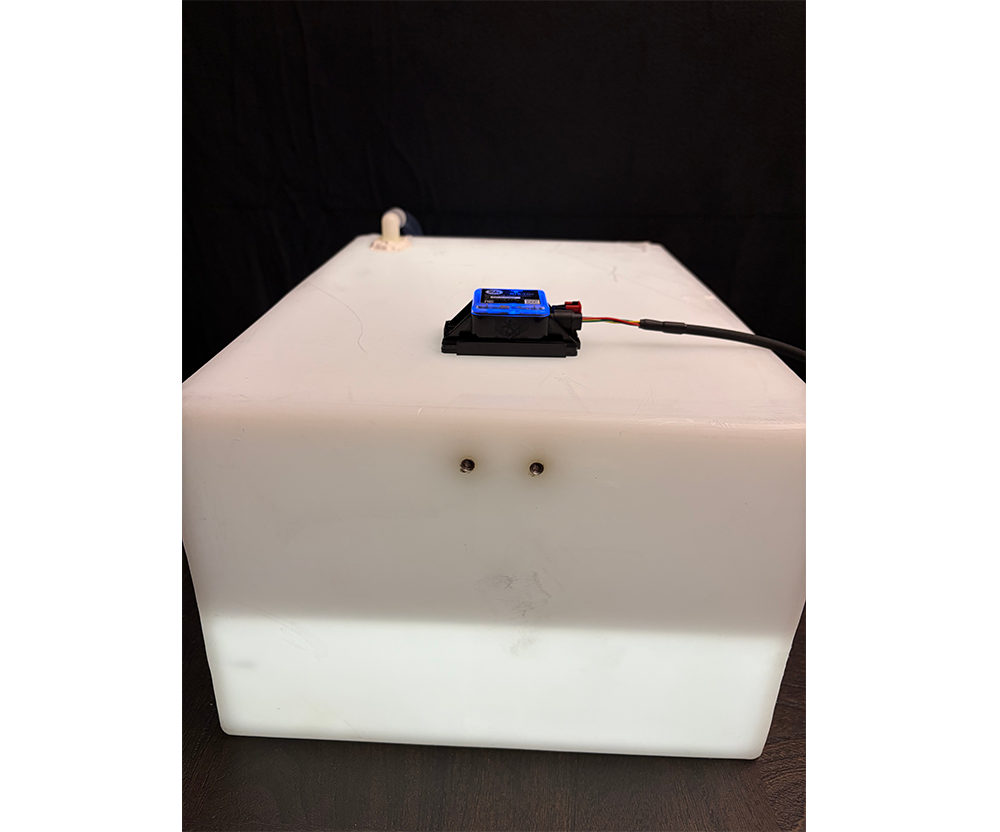

The radar sensor operates through the tank wall requiring no holes or openings of any kind. It is mounted on the top exterior of the liquid containing tank. The sensor utilizes miniature radar to measure the distance from the top of the tank to the liquid surface contained within, which is then translated to fill level by the sensor.

**Patent Pending

REQUEST INFO

The RTS-100 radar liquid level sensor is designed for use in recreational vehicles, campers, or anywhere a compact, low power, highly accurate liquid level measurement is needed. The sensor is impervious to corrosion, build up, and mixed materials. It features advanced digital signal processing to always provide an accurate level even when other competitive products fail.

The radar sensor operates through the tank wall requiring no holes or openings of any kind. It is mounted on the top exterior of the liquid containing tank. The sensor utilizes miniature radar to measure the distance from the top of the tank to the liquid surface contained within, which is then translated to fill level by the sensor.

**Patent Pending

REQUEST INFO

The RTS-100 utilizes the latest advancements in technology to deliver uncompromising accuracy and dependability. The sensor offers the following features:

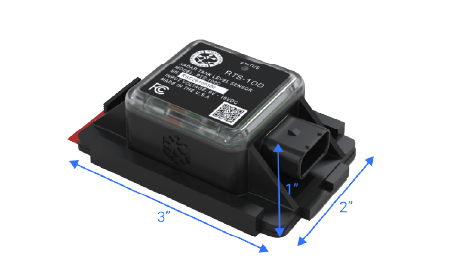

  • Small size: 1.9” x 2.9” x 1.0” (W x L x H)

  • Low power: < 20 mA during active radar measurement

  • Light weight: 2 oz

  • Resolution: 2.5 mm

  • Tank Height: 4” to 36”

  • Does not require any holes or openings to measure the liquid level in the tank

  • Simple adhesive attachment to tanks with a slide bracket for easy removal

  • Standard interface: CAN 2.0 (RV-C)

  • Optional interfaces: LIN 2.2, Analog (Resistive)

  • Power requirement: 9 ~16 VDC

  • Compliant to FCC Part 15 Subpart B & CISPR 25 Class 5

  • Rated to IP68 with properly configured and mated connector

Note: Technical specifications subject to change without notice.

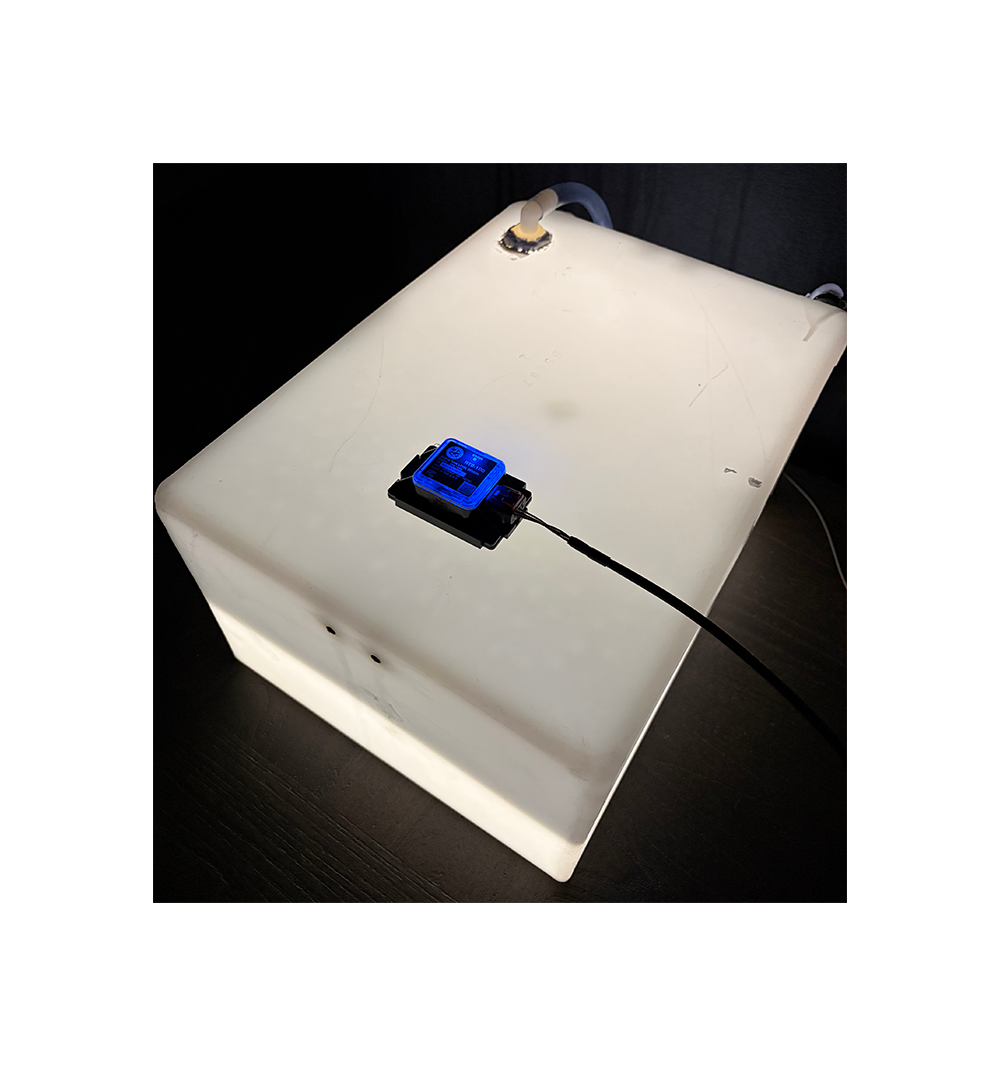

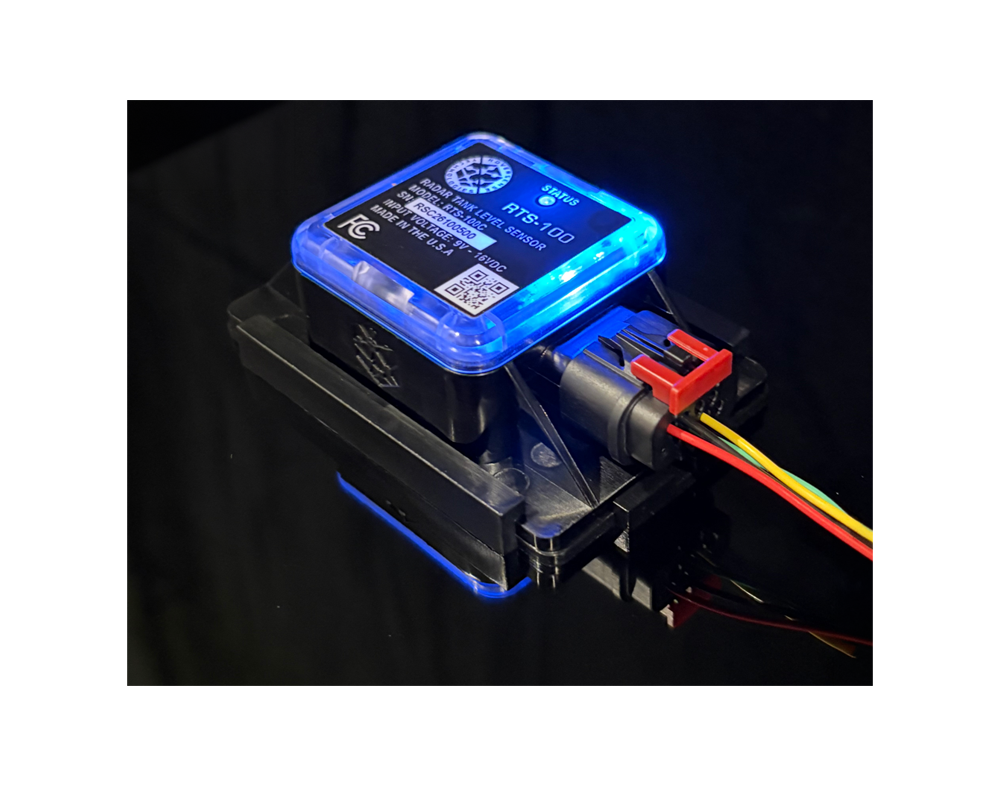

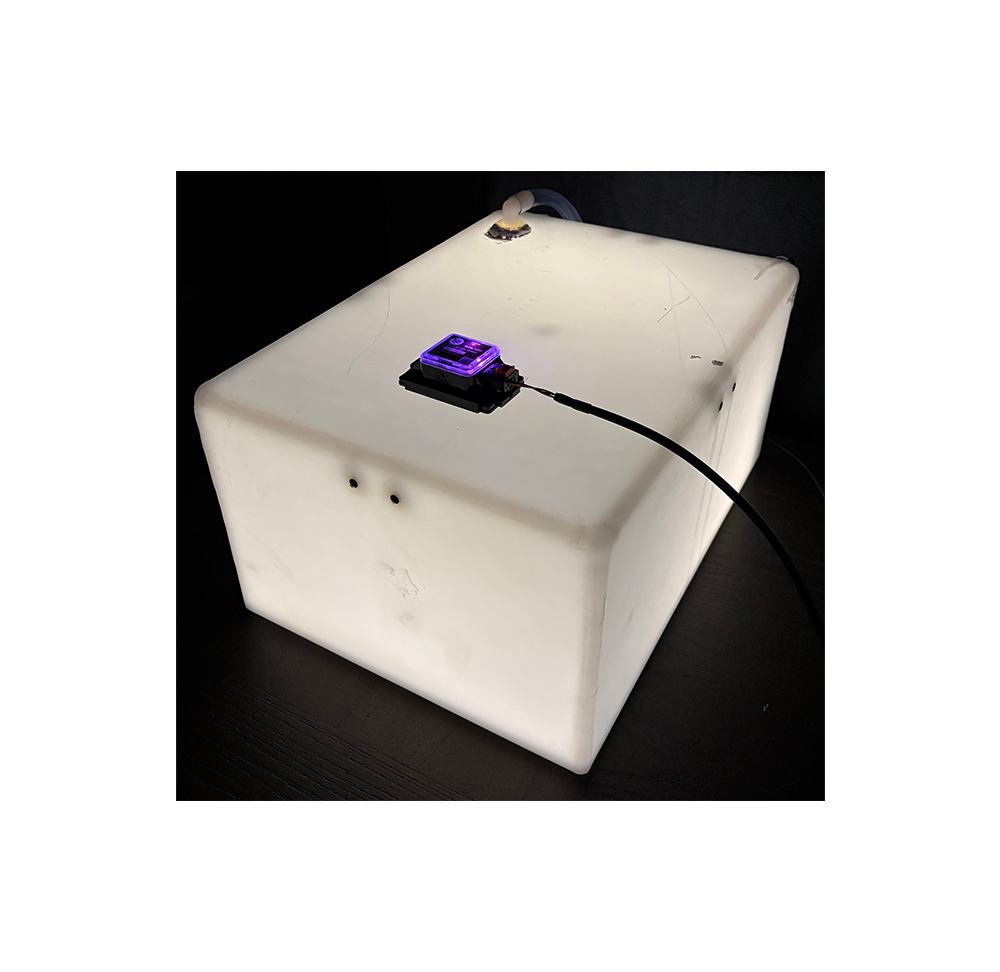

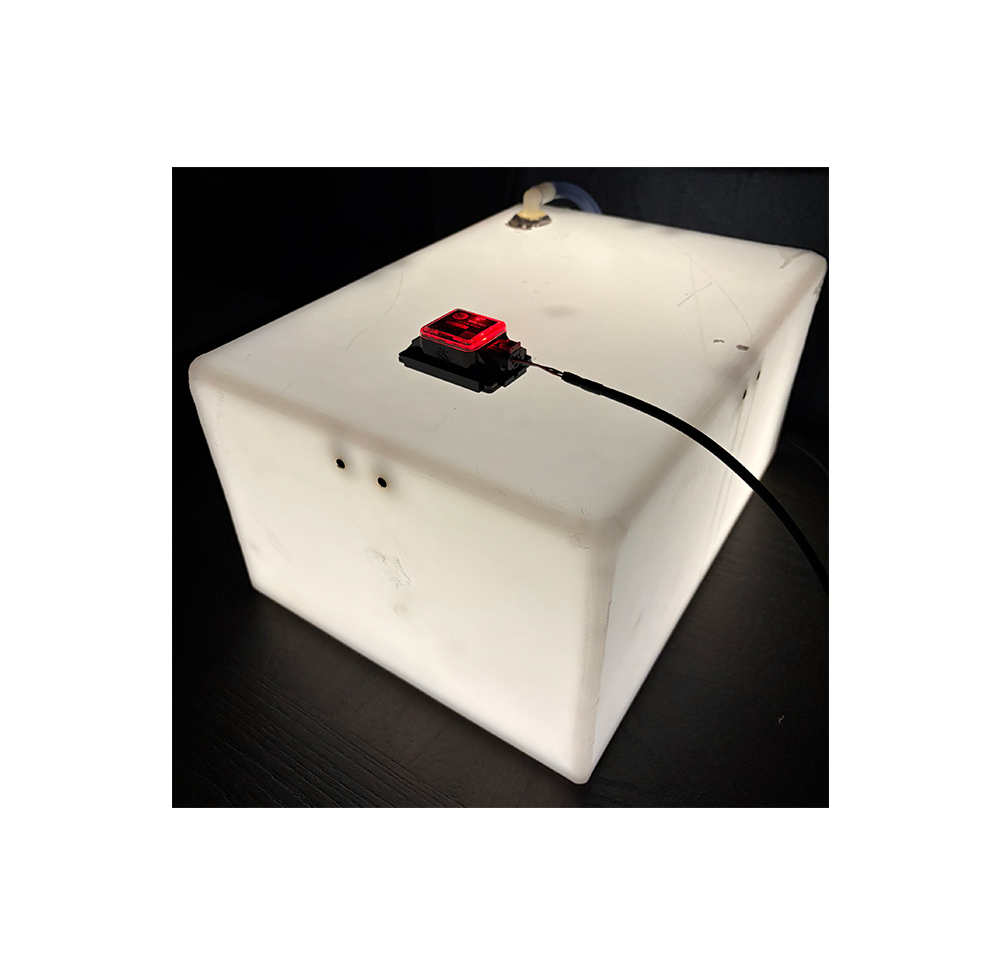

Images shows RTS-100 operational status and corresponding illumination

RTS - 100 operational states and illuminated diagnostic indicators
